Products > Pressure Transmitter

Pressure Transmitter


Item: PT001(PT124S-251/PT124B-251 )
Characteristic & purpose
Small volume, high property.
Application:oil, gas control systems.

Technology Parameter
Measure series:0~10KPa~300MPa
General precision: 0.1,0.2,0.3
Cycling: 0.05,0.1%FS non-line, following: 0.1,0.2%FS
Stablity: 0.25%FS
Output.input resistance:38010%;1000 10%
Measureoutput:1,1.5mV/V 0.1mV/V 100mV/V 0.1mV/V
Bridge Voltage:10V(6-12V)DC unbalanced zero output: 5%FS
Insulation resitance: 500M (50VDC) operating
Capability:150% temperature-resistance:-40~ +125 zero
Drift:0.02%FS/power:24V(13~36V)DC Output:4~20mA;0~10(20)mA;1~5V;0~10V;0~5V operating resistance:4~20mA 24V 550

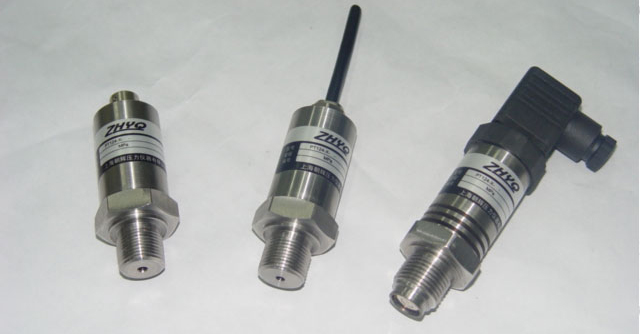

Item: PT002(PT124S-217/PT124B-217 )
Characteristic & Purpose
All stainless structure, particular design, small volume, high property.
Application: operating or measure equippment,envioronment, coal mineral, power station.

Technology parameter
Measure range:0~10KPa~300MPa
Precision degree: 1%FS,0.5%FS, 0.25%FS
Cycling: 0.05, 0.1%FS non-lining: 0.1,0.2%FS
Stability: 0.25%FS
Output.input resistance:380 10%;100010%
Output singal: 0~10mV, 0~15mV, 0~20mV, 0~33.33mV, 0~100mV, 0~5V, 0~10V, 0~20mA, 4~20mA
Bridge voltage:10V(6-12V)DC;24V(13~36V)DC unbalanced zero output:5%FS resistance 500M(50VDC)
Temperature-resistance:-40~+125zero drift:0.02%FS/
Operating resistance:4~20mA 24V 550
Covering material: 316stainless
Outer material: 316stainless
Setup: screw connecter
Covering cable pressure: twice measure or 150MPa, resistanc:more200M, measure voltage50V DC

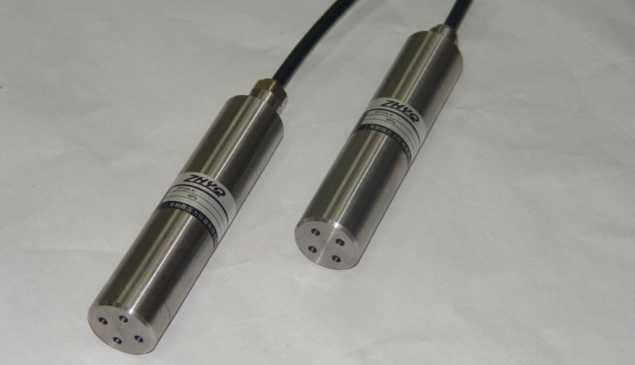

Item: PT003(PT124B-220)
Characteristic & purpose
Property: all stainless structure.
Application: oil-chemical, chemistry.

Technology parameter
Measure range:0~1m-0~200m(water volume)
Precision degree:1%FS, 0.5%FS, 0.25%FS
Output singal: 4~20mA; 0~5V
Power voltage: 24VDC
Temperature fitting: 0~70
Temperature range: -20~+125
Zero drift: lower 0.05% FS/
Storage temperature:-40~+90
Measure drift:lower 0.05% FS/
Resistance: more200M, measure voltage50V DC material: 316stainless PUrabber Outer material: 316stainless
Power connetor: cable
Operating pressure: twice measure pressure connetor: stainless head



Item: PT004(PT124S-210/PT124B-210)
Characteristic & purpose
Metre pressure, small volume, high property, high property and price average, high stability, hjgh intelligence usage: centre controling conditions

Technology parameter
Measure range: 0~10KPa~250MPa
Precision degree: 1%FS, 0.5%FS, 0.25%FS
Output singal: 0~10mV, 0~15mV, 0~20mV, 0~33.33mV, 0~100mV, 0~5V, 0~10V, 0~20mA, 4~20mA
Power voltage: +10VDC, +12~36VDC
Temperature fitting: 0~+70
Middler temperature: -40~+125
Zero drift: lower0.05%FS/
Condition temperature: -20~+125
Measure drift: lower0.05%FS/
Middler material: 316stainless
Outer material: 316stainless setup: screw power connector:cable pressure: twice measure weight: 18020g resistance: more200M, measure voltage50V DC




Item: PT005(PT124S-214/PT124B-214)
Characteristic & purpose
Covering stainless structure, small volume, high intelligence usage:liwuid pressure, center controling condition

Technology parameter
Measure range: 0~10KPa~250MPa
Precision degree:1%FS, 0.5%FS, 0.25%FS, 0.1%FS
Output singal: 0~10mV, 0~15mV, 0~20mV, 0~33.33mV, 0~100mV, 0~5V, 0~10V, 0~20mA, 4~20mA Power voltage: +10VDC, +12~36VDC
Temperature fitting: -20~+65
Middle temperature: -40~+125
Zero drift: lower 0.05%FS/
Measure drift: lower 0.05%FS/
Middle material: 316stainless outer material: 316stainless setup: screw power Connector: cable operating pressure: 1.5 measure resistance: more200M, measure voltage50V DC
