Industrial
Glass Thermometer

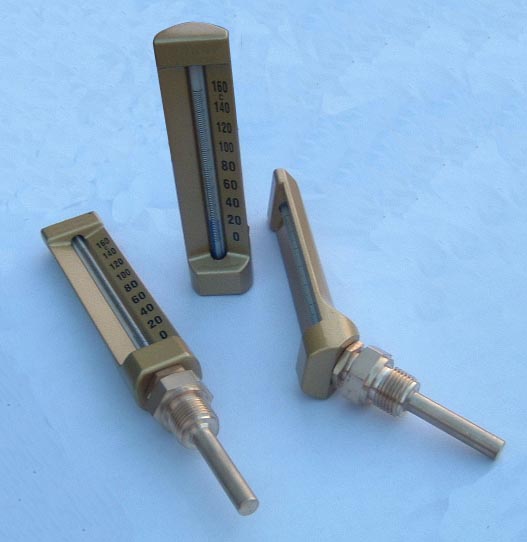

| V
shaped glass thermometer |
Upper
part:
die casting aluminum, gold painted or anodized (A: Anodized
type, B:polished type, C: Gold painted)
Upper part size: 110 X 34mm,
150 X 34mm, 200 X 34mm
Range: -40-600  /
Lower part: copper for range
-40-300 /,
stainless steel for
range 400-600 /
Lower part: 30-500mm length
Connections: straight angle,
90o
angle or 135o
angle
Inserts: capillary glass, round
or triangle shape
Thermometer fluid: blue or red
organic liquid (-40~200-40~400
),
everlasting amber scale ( < 400 /750)
; mercury(upwards 200 /400),
blackness fill in of etched scale(>400 /750)
Scale div():
0.5125
,10
Thread: 1/2" BSP,NPT,BSPT
or M20X1.5 etc, or as customer's request
Package: standard white box |
 |
| Metal
Bushing Thermometer |
|
Bushing:
round shape, material: plain copper or chrome plated copper
or chrome plated steel
Installation form: straight
form or 90o angle form
Upper part diameter: 13mm,
20mm
Upper part length: 110 mm,
120 mm(
13mm
) 150 mm, 200 mm, 220 mm(
20mm)
Lower part diameter: 8~12mm
Lower part length: 35mm~300mm
Connect pipe thread: 1/2",
3/8" (for upper part
13mm),
3/4", 1/2", 3/8" (for upper part
20mm)
Thermometer fluid: blue or
red organic liquid (-40~200/-40~400);
mercury (upwards 500/750)
Range: -40~500/-40~750
Scale div():
0.2, 0.5, 1, 2, 5
|
|
| |
|
| Hot
Water Glass Thermometer |
Plastic
Shell Submarine Thermometer
Straight
form or 90o angle form
White V-shaped aluminium scale panel
Gray Thermoplastic Resin shell
Glass face (window) to protect from dirt and dust
Trigonal red reading liquid filled tube
Lower part: Fixed connected with
thread, made in copper, length: 43~100 mm
Connect pipe thread: 3/4",
1/2"
Dual scale measuring range: -40~200/-40~400 |
|
|
Iron
Sheet Submarine Thermometer
Straight
form or 90o angle form
White
resin lacqure
Trigonal red reading liquid filled tube
Lower part: Fixed connected with
thread, made in copper, length: 45~80 mm
Connect pipe thread: 1/2"
NPT
Dual scale measuring range: -40~200/-40~400
|
|
9"
Adjustable angle glass thermometer
Upper
part:
Aluminum die-casting, black painted
The length of the upper part of the
body: 9"
lower part: Aluminum die-casting
The length of the lower part:
3-1/2"
White V-shaped aluminum scale panel.
Glass face (window) to protect from dirt and dust
Red Reading Mercury filled tube with magnifying lens for easy
read
Filled tube with magnifying lens for easy readability (green
liquid)
Range: -40-10/
0-120/
0-160/
30-180/
30-240/
30-300/
50-400/
50-550/
50-750/
Packing: Packed in corrugated paper box each Pcs.
large packing: Packed in corrugated paper box 46X28X42 cm(30Pcs)
large packing: Packed in corrugated paper box 52X35X50 cm(60Pcs) |
|
| |

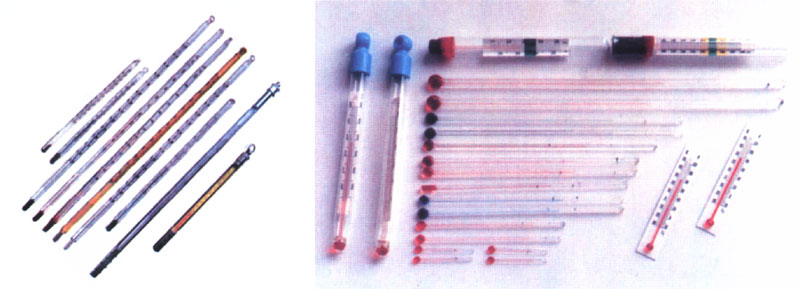

Glass
Insert or Glass Tube Thermometer
Traditional handwork glass fire and advanced computer aided
plot, everlasting amber silk screen printing made of all series
of general solid-stem type glass thermometers and etched lab
thermometer.
Scale div():
0.2, 0.5, 1, 2, 5
Stem Diameter: 2.5mm to 6.5mm
Length: 110mm ~ 480mm
The extent of survy: -40-600/
Thermometer fluid: blue or red
organic liquid (-40~200/-40~400)
Mercury (upwards 600/)
The way of immersion: partial
76mm or total immersion
Background: yellow or white back
positive |
| |
 |
| |
| |

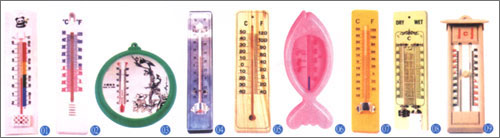

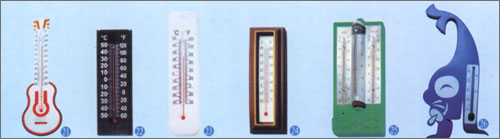

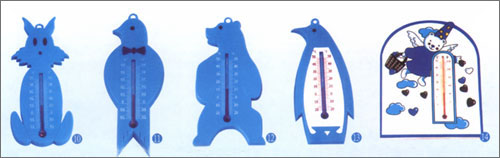

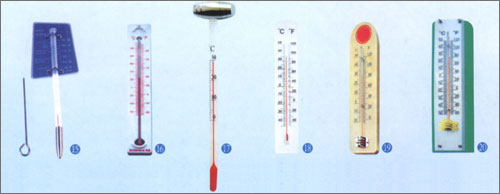

| Household
Glass Thermometer |
 |
| |
 |
| |
 |
| |
 |
| |
|
|
