Products > Pressure Gauge > Utility or Dry Gauge > A Type

Utility or Dry Gauge - A - B - C - D - E - G - J - M - P - S - U - Y

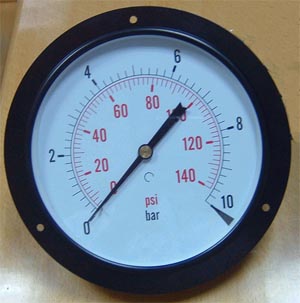

A TYPE


Dial sizes: 1.5", 2", 2.5", 3", 3.5", 4", 4.5", 6", 8", 10"
Case type: black steel case, with black steel bezel(or stainless steel roll ring for U-clamp mount)
Window: glass window
Face and pointer: aluminum finish
Movement: brass
Tube: brass or phosphor bronze tube
Connection: brass bottom connection, center back connection, lower back connection, center back connection with front flange, center back connection with U-clamp, bottom connection with rear flange available
Thread:1/8", 1/4", 3/8", 1/2" BSP, NPT, BSPT or according to customer's request
Accuracy: +/-3-2-3% of FSD
Pressure range: -30" Hg-0-6,000psi-15,000psi
Restrictor: standard for all range
Application: for measurement of steam, air, oil, water and other pressure media, which have no effect on bronze and brass
