    Products > Pressure Gauge > Utility or Dry Gauge > P Type

Utility or Dry Gauge - A - B - C - D - E - G - J - M - P - S - U - Y


P TYPE

Dial sizes:
1.5", 2", 2.5", 4"
Case type: ABS case
Window: snap on plastic window
Face and pointer: aluminum finish
Movement: brass
Tube: brass or phosphor bronze tube
Connection: brass bottom connection, center back connection available
Thread: 1/8", 1/4", 3/8", 1/2" BSP, NPT, BSPT or according to customer's request
Accuracy: +/-3-2-3% of FSD
Pressure range: -30" Hg-0-6000psi
Restrictor: standard for all range
Application: for measurement of steam, air, oil, water and other pressure media, which have no effect on bronze and brass








PTFE connection

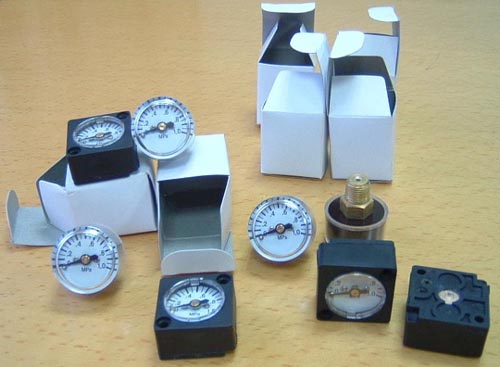

More choice of 1" gauge in 23mm and 25mm diameter
23mm ABS case, back connection

PS2301

PS2302


25mm ABS case, back connection

P2501

P2502

P2503

P2504

P2505

P2506

P2507

P2508

P2509

25mm Steel case, lower mount

PS2501

PS2502

PS2503


World's smallest pressure gauge, in both round and rectangular shape
